[62-800mm]SC3 60/2机型
![[62-800mm]SC3 60/2机型](pic/2014070111202737925.jpg)

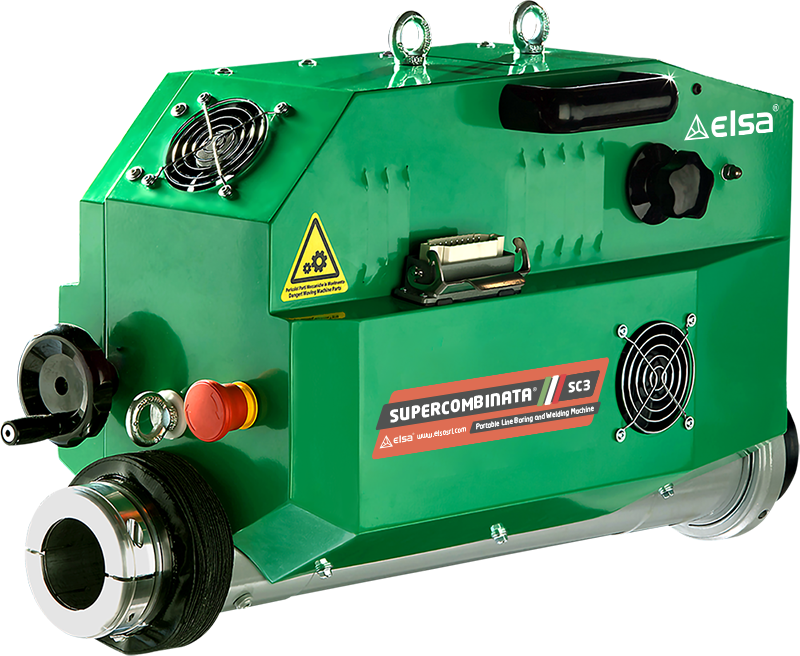

SC3 60/2型
PORTABLE LINE BORING AND ROATARY WELDING MACHINE
(from Ø62mm to Ø800mm )
便携式直线镗孔与旋转焊接组合机
（加工直径范围：Ø62 mm 到 Ø800mm）
The model SUPERCOMBINATA SC3 60/2 has a 2300W - 4 geared motor and its working range is from . ∅ 62 mm to ∅ 800 mm. By means of extra
equipment the diameter range can be increased to ∅ 1200 mm or reduced down to ∅ 22 mm.
型号SUPERCOMBINATA SC3 60/2配备一个2300W – 4齿轮的电机，其加工直径范围为∅ 62到∅ 800mm，若选配套件，加工直径可增加到∅ 1200mm,减小到∅ 22mm。
Furthermore the SUPERCOMBINATA SC3 60/2 can be equipped with additional accessories to make the following applications: 另外SUPERCOMBINATA SC3 60/2 配备选配套件可实现如下功能
- FACING铣端面
-BORING 镗孔
-MILLING 铣削
-THREADING 车内螺纹
- FLANGE FACING 法兰面铣
-SEEGER CIRCLIPS 卡簧切槽
Elsa’s ranges of Line Boring & Rotary Welding Machines are compatible with any MIG/MAG power source with an Euro connection.
Elsa生产的系列直线镗孔与旋转焊接组合机，可以与带欧插接口的MIG/MAG焊机相兼容。（保护气通常是氩气或氩气与二氧化碳的混合气）
1. EXTRA KITS可选配的扩展功能套件
|
Code 编码 |
Description产品描述 |
|
Kit for Line Boring直线镗孔套件 |
|
|
KEP00187 |
∅22mm- ∅50mm |
|
KEP00188 |
∅32mm- ∅100mm |
|
KEP00688 |
∅42mm- ∅140mm |
|
Kit for Line Boring and Overlay Welding直线镗孔和旋转焊接套件 |
|
|
KED00366 |
∅800mm-∅1200mm |
|
Kit for flange surface and creating Circlip Grooves端面铣和卡簧切槽套件 |
|
|
KES00186 |
∅48mm- ∅255mm |
|
Coupled with a reduction kit 60/40 mm 和一套变径套相接，使主机孔镗杆安装孔由60mm变成40mm。 |
|
|
KES00200 |
∅56mm- ∅400mm |
|
Coupled with a reduction kit 60/40 mm 和一套变径套相接，使主机孔镗杆安装孔由60mm变成40mm。 |
|
|
KES00363 |
Ø 228 mm - Ø 500 mm |
|
KES00364 |
Ø 376mm - Ø 800 mm |
|
Kit for Threading 车内螺纹套件 |
|
|
KFL00928 |
∅120mm- ∅350mm |
2. ACCESSORIES 可选配的附件
|
Code编码 |
Description 产品描述 |
|
AE000441 |
JOINT FOR BORING BAR (A) ∅60MM 镗杆间接头（A）∅60mm |
|
AE000442 |
JOINT FOR BORING BAR (B) ∅60MM 镗杆间接头（B）∅60mm |
|
AE003014 |
BORING BAR ∅40X3000mm 镗杆∅60X3000mm |
|
AE030025 |
BORING BAR ∅60X1100mm (WITH MORSE 4 TAPPER)镗杆∅60X1100mm(带莫氏4号锥柄) |
|
AE000443 |
J MORSE 4 TAPPER 莫氏4号锥柄 |
|
SG00122 |
TOOLHOLDER RIGHT ∅12X60mm 右刀杆∅12X60mm |
|
SG00102 |
TOOLHOLDER LEFT∅12X100mm 左刀杆∅12X100mm |
|
SG00127 |
TERMINAL LANCE Min. ∅30mm max. ∅50mm 焊枪头最小∅30mm，最大∅50mm |
|
COT90201 |
LONG CONTACT TIP ∅1.0mm 长导电嘴∅1.0mm |
|
COT90202 |
SHORT CONTACT TIP∅1.0mm 短导电嘴∅1.0mm |
3. TECHNICAL FEATURES 技术特点
★ Geared transmission 齿轮传动
★ Permanent lubrication 永久润滑
★ Synchronous feed & rotation motion enables a smoother rotary welding mode 旋转和进给同步运动，提供顺畅的旋转焊接模式
★ Conical supports 锥形支座保证加工精度
★ Telescopic welding torch伸缩焊枪
★ 110V power supply also available on quest 适用电压110V，也可根据客户选择合适的电压。（如中国220 V）
4. TECHNICAL DATA SHEET 技术参数表
|
Diameters加工直径范围 |
|||||
|
BORING BAR DIAMETER镗杆直径 |
Ø 60mm |
||||
|
BORING BAR LENGTH镗杆长度 |
2200mm |
||||
|
INLINE BORING内部直线镗孔直径 |
Ø 62 – Ø600 mm |
||||
|
EXTERNAL BORING外圆车削 |
Kit optional需选配套件 |
||||
|
INTERNAL WELDING内部堆焊直径范围 |
Ø42 – Ø800 mm |
||||
|
EXTERNAL WELDING外圆堆焊直径范围 |
Ø42 – Ø800 mm |
||||
|
DRILLING 钻孔 |
Kit optional需选配套件 |
||||
|
TAPPING 攻丝 |
Kit optional需选配套件 |
||||
|
THREADING车内螺纹 |
Kit optional需选配套件 |
||||
|
FACING端面铣 |
Kit optional需选配套件 |
||||
|
Rotation motor旋转电机参数 |
|||||
|
AC motor single phase 单相交流电机 |
|||||
|
Power at rated speed 额定功率 2300 W |
|||||
|
Output torque at the bar 902Nm with 55rpm 镗杆在55rpm时的最大扭矩902N.M |
|||||
|
Speed档位及最大转速 |
1°Speed 1档 |
2°Speed 2档 |
3°Speed 3档 |
4°Speed 4档 |
|
|
55rpm |
82rpm |
220rpm |
370rpm |
||
|
Output torque输出扭矩 |
450N.M |
300N.M |
100N.M |
70 N.M |
|
|
Feed motor进给电机参数 |
|||||
|
DC Motor直流电机 |
|||||
|
Power at rated speed额定功率90W |
|||||
|
Max.speed 11rpm最大转速11rpm |
|||||
|
Electromechanical feed system电子机械进给系统 |
|||||
|
Manual Automatic feed手动/自动进给 |
|||||
|
Welding technology焊接技术 |
|||||
|
Spiral (continuous with variable step)螺旋进给（连续可变间距） |
|||||
|
Longitudinal stroke纵向行程 |
|||||
|
Unlimited with steps of 350mm 无限制可调350mm |
|||||
|
Electronic control panel电子控制器 |
|||||
|
Voltage电压220V(50/60HZ) |
|||||
|
Main switch主开关 |
|||||
|
Emergency switch紧急开关 |
|||||
|
Inverter cw/cww feed进给方向逆变器 |
|||||
|
Inverter cw/cww Rotation旋转方向逆变器 |
|||||
|
Potentiometer adjustment rotation rpm旋转速率调节 |
|||||
|
Potentiometer adjustment feed rpm进给速率调节 |
|||||
|
Electrical absorption总电吸收量2000W |
|||||
|
Dimensions of main unit 主机尺寸及重量 |
|||||
|
Length长：680mm， Width宽：300mm，Height高：390mm |
|||||
|
Weight of central unit主机重：45KG |
|||||
5.STANDARD EQUIPMENT 标准配置
|
Description配置名称 |
QTY数量 |
|
MAIN UNIT主机 |
1 |
|
ELECTRONIC CONTROL PANEL电子控制器 |
1 |
|
BORING BAR镗杆Ø60x2200mm |
1 |
|
BORING BAR EXTENSION镗杆加长节520mm |
1 |
|
TELESCOPIC WELDING TORCH堆焊专用伸缩焊枪 |
1 |
|
LANCE FOR EXTERNAL WELDING外焊枪头 |
1 |
|
DIFFUSER EXTENSION 100 mm焊枪头扩展 |
5 |
|
LANCE EXTENSION气体分流嘴35mm |
5 |
|
LONG NOZZLE长焊嘴 |
4 |
|
SHORT NOZZLE短焊嘴 |
4 |
|
LONG CONTACT TIP 长导电嘴Ø 0,8 mm |
5 |
|
SHORT CONTACT TIP 短导电嘴Ø 0,8 mm |
5 |
|
ADJUSTING PLUG FOR TOOL HOLDER 刀杆调节环 |
1 |
|
BOX WITH 10 CUTTING EDGES 10片硬质合金刀片/盒 |
1 |
|
TOOL HOLDER RIGHT右刀杆 Ø 12x100 mm |
1 |
|
TOOL HOLDER LEFT 左刀杆Ø 12x60 mm |
1 |
|
SPECIAL TOOL HOLDER LEFT专用左刀杆Ø 12x60 mm |
1 |
|
TOOL HOLDER RING FOR WORKS FROM Ø 250 TO 800 mm扩展刀架加工直径范围Ø 250 到 800 mm |
1 |
|
TOOL HOLDER FOR BORING FROM Ø 120 TO 250 mm扩展刀架加工直径范围Ø 120 到 250 mm |
1 |
|
MAIN BAR SUPPORT主支座 |
2 |
|
ADDITIONAL SUPPORT副支座 |
2 |
|
CENTRING KIT FROM Ø 250 TO 600 mm定心套件用于直径Ø 250 到 800 mm |
1 |
|
SPINDLE CENTRING KIT通心孔定心套件 |
1 |
|
SPINDLE CENTRING KIT FOR BLIND HOLES盲孔定心套件 |
1 |
|
DIAL GAUGE百分表 |
1 |
|
DIAL GAUGE SUPPORT百分表架 |
1 |
|
TELESCOPING GAUGE Ø 12 mm内径伸缩规 |
1 |
|
BRACKET FOR FLANGES A法兰支架片A |
18 |
|
BRACKET FOR FLANGES B法兰支架片B |
18 |
|
FLANGES SUPPORT FROM Ø 250 TO 800 mm 法兰支座Ø 250 到800 mm |
4 |
|
REDUCTION BUSHING DRAWING TORCH用于机器前面塞住焊枪的变径套 |
1 |
|
REDUCTION BUSHING LOCKING TORCH用于机器后面锁住焊枪的变径套 |
1 |
|
HEXAGONAL BOLT M14X80 mm 六角螺栓M14X80 mm |
18 |
|
ALLEN BOLT M14X50 mm艾伦螺栓M14X50 mm |
54 |
|
HEXAGONAL NUT M14六角螺母M14 |
18 |
|
CABLE CONTROL PANEL/MACHINE数据线 |
1 |
|
POWER CABLE 220V/CONTROL PANEL电源插头线 |
1 |
|
BORING MACHINE STAND镗孔机机架 |
1 |
|
COMPLETE SET OF WRENCHES全套扳手 |
1 |
6. STANDARD EQUIPMENT’S PHOTO部分零配件图
|
electrical control panel 电子控制器 |
Boring bar镗杆Ø60x2200mm |
Boring bar extension镗杆加长Ø60x520mm |
CABLECONTROL PANEL/MACHINE数据线 |
|||
|
TELESCOPIC WELDING TORCH伸缩焊枪 |
Carbide insert 硬质合金刀片10片 |
Right toolholder右刀杆 Ø12 X100mm |
左刀杆Ø12X 60mm |
|||
|
Special left toolholder专用刀杆Ø12X60mm |
Spindle centering kit定心套件Ø60 X250mm |
Short Contact tips短导电嘴Ø0.8mm |
Long contact tips长导电嘴Ø0.8mm |
|||
|
Full set of wrenches全套扳手 |
Centering kit定心套件：Ø250mm到600mm |
GC06SC2-3 Main support锥形螺纹主轴承支座 |
GC13SC2-3 Additional support附加支座 |
|||
|
百分表支架 |
Dial gauge百分表0.01-5mm-/+ |
Toolholder extension刀架扩展Ø250mm到800mm |
Toolholder extension刀架扩展Ø120mm到250mm |
|||
|
Lance for external welding外焊枪茅 |
Lance extention气体分流嘴35mm |
Diffusor extension气体分流嘴100mm |
Long nozzle长焊嘴 |
|||
|
Short nozzle短焊嘴 数量：4 |
Telescoping gauge伸缩尺800mm |
Boring machine stand 镗孔机机架 |
Bind hole centering kit盲孔主轴定心套件 |
|||
|
Flange support法兰盘
|
|
|
Flange brackets B法兰支架B |
|||
|
Flange brackets A法兰支架A |
|
|
|
|||
7.SPARES易损件
|
|
Nozzle焊嘴、contact tip导电嘴、Carbon brush碳刷、Carbon brush holder碳刷柄、Magnetic ring磁环、Terminal lance for internal welding焊枪头、Tool holder各类刀杆、cutting edges硬质合金刀片、Fuse保险丝 |
8.ONSITE MACHINING GALLERY现场加工图例
（1）Blind Hole Machining盲孔加工
（2）Line
Boring通心孔加工
（3）Fflange Facing法兰端面铣
（4）Threading车螺纹
（5）Internal Overlay Welding内圆焊接
（6）external welding外圆焊接及车外圆
（7）Seeger Circlips卡簧切槽
（8）Drilling钻孔
